FOD2741BSD onsemi / Fairchild

Product Categories

ZhongHao Industry Limited

Contact Now

Description : FOD2741BSD onsemi / Fairchild SMD-DIP-8

Contact Now

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	onsemi
Product Category:	Optically Isolated Amplifiers
RoHS:	Details
Series:	FOD2741B
Output Type:	Phototransistor
Number of Channels:	1 Channel
Isolation Voltage:	5000 Vrms
If - Forward Current:	20 mA
Vf - Forward Voltage:	1.5 V
Package / Case:	SMD-DIP-8
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	SMD/SMT
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	onsemi / Fairchild
Collector-Emitter Breakdown Voltage:	70 V
Current Transfer Ratio:	100 % to 200%
Height:	3.94 mm
Length:	9.91 mm
Maximum Collector Current:	50 mA
Maximum Collector Emitter Saturation Voltage:	400 mV
Maximum Collector Emitter Voltage:	30 V
Product Type:	Optically Isolated Amplifiers
Reference Voltage:	2.495 V
	1000
Subcategory:	Optocouplers
Width:	6.86 mm
Part # Aliases:	FOD2741BSD_NL
Unit Weight:	0.025397 oz


*From:	Your email address is incorrect!
*To:	ZhongHao Industry Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

*From:

*To:

ZhongHao Industry Limited

*Subject:

*Message:

Characters Remaining: (0/3000)

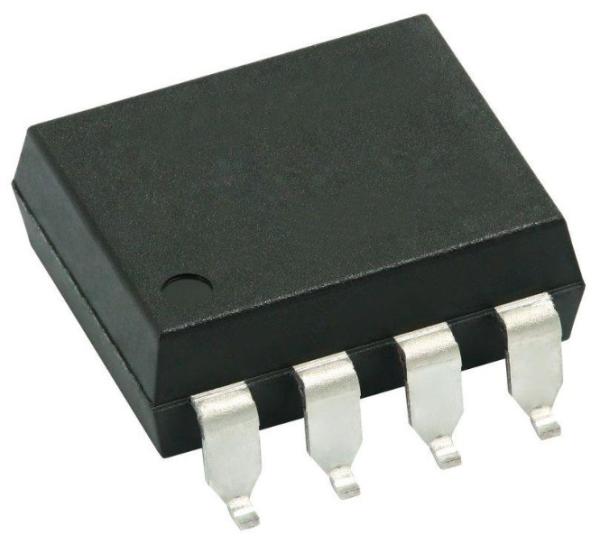

FOD2741BSD onsemi / Fairchild Images
