MC7812ACD2TR4G onsemi

Here is the English description of the MC7812ACD2TR4G chip:

• Function: Positive Fixed Voltage Regulator
• Input Voltage Range: 8V to 20V
• Output Voltage: Fixed 12V
• Output Current: Up to 1A
• Dropout Voltage: 2V (max)
• Package: TO-220

The MC7812ACD2TR4G from ON Semiconductor is a positive fixed voltage linear regulator capable of providing 1A of continuous current at a 12V output from an 8V to 20V input.

Key Features:

• Standard 12V output voltage
• Wide 8V to 20V input operating range
• Maximum output current of 1A
• Low 2V maximum dropout voltage
• TO-220 package for enhanced thermal management

Common Applications:

• Automotive auxiliary systems requiring 12V
• Industrial equipment and factory automation
• LED driver and lighting power supplies

Benefits Include:

• Simplifies design with reliable fixed 12V output
• Tolerates varying vehicle/industrial power sources
• Dissipates heat from higher output currents

Well-suited for applications requiring a 12V output where wide input compatibility, higher current drive or effective thermal management are important criteria.

In summary, the MC7812ACD2TR4G delivers 1A of 12V regulation with best-in-class voltage tolerance capabilities.

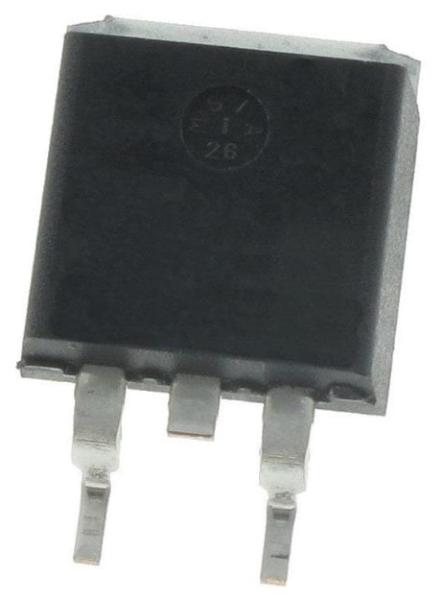

MC7812ACD2TR4G onsemi Images
