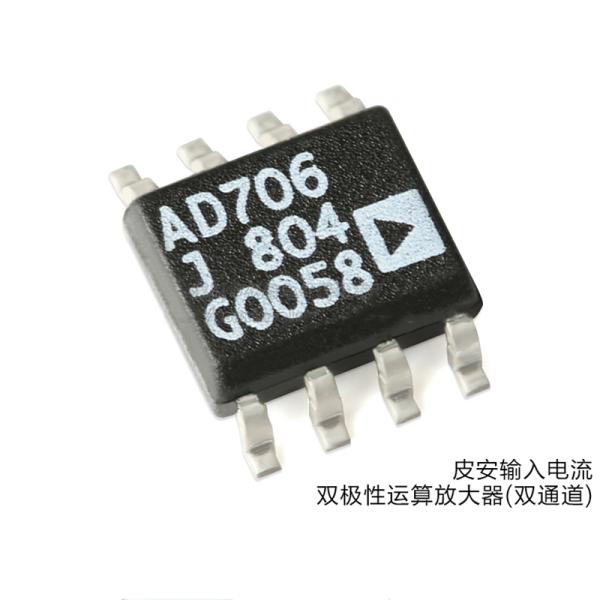

AD706JRZ-REEL7 SOIC-8 Precision Amplifiers Analog Devices 16 Bits

Product Categories

HK NeoChip Technology Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ADI

Model Number : AD706JRZ-REEL7

Payment Terms : T/T

Price : 1.6u

Number Of Outputs : 1

Supplier Device Package : 44-PLCC (16.59x16.59)

Mfr : Analog Devices Inc./Maxim Integrated

Features : Buffered, RGB

Oscillator Type : External

Digikey Programmable : Not Verified

Data Interface : I²C

Mounting Type : Surface Mount

Base Product Number : MAX5071

Number Of Circuits : 4

Program Memory Type : FLASH (64kB)

Number Of Bits : 16

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 105°C

Contact Now

Manufacturer:	Analog Devices Inc.
Product Category:	Precision Amplifiers
RoHS:	Details
Number of Channels:	2 Channel
GBP - Gain Bandwidth Product:	800 kHz
SR - Slew Rate:	150 mV/us
Vos - Input Offset Voltage:	100 uV
Ib - Input Bias Current:	250 pA
Supply Voltage - Max:	+/- 18 V
Supply Voltage - Min:	+/- 2 V
Operating Supply Current:	800 uA
Output Current per Channel:	15 mA
CMRR - Common Mode Rejection Ratio:	110 dB
en - Input Voltage Noise Density:	17 nV/sqrt Hz
Package / Case:	SOIC-8
Mounting Style:	SMD/SMT
Shutdown:	No Shutdown
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	AD706
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Analog Devices
Dual Supply Voltage:	+/- 15 V
Height:	1.5 mm (Max)
Length:	5 mm (Max)
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 2 V
Operating Supply Voltage:	4 V to 36 V
Pd - Power Dissipation:	650 mW
Product:	Precision Amplifiers
Product Type:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	110 dB
	1000
Subcategory:	Amplifier ICs
Type:	General Purpose Amplifier
Voltage Gain dB:	126.02 dB
Width:	4 mm (Max)
Unit Weight:	0.019048 oz
