Brand Name : ADI

Model Number : AD8221ARZ-R7

Payment Terms : T/T

Price : 2.4u

Synchronous Rectifier : No

Output Voltage : 5 V

Clock Sync : No

Description : IC REG CTRLR BOOST/SEPIC 12TQFN

Digikey Programmable : Not Verified

Base Product Number : ADSP-21062

Series : DARWIN

Number Of Channels : 1

Output Configuration : Positive

Mounting Type : Through Hole

Core Size : 16/32-Bit

Number Of Circuits : 2

Operating Temperature Range : -40°C to +85°C

Mfr : Analog Devices Inc.

Contact Now

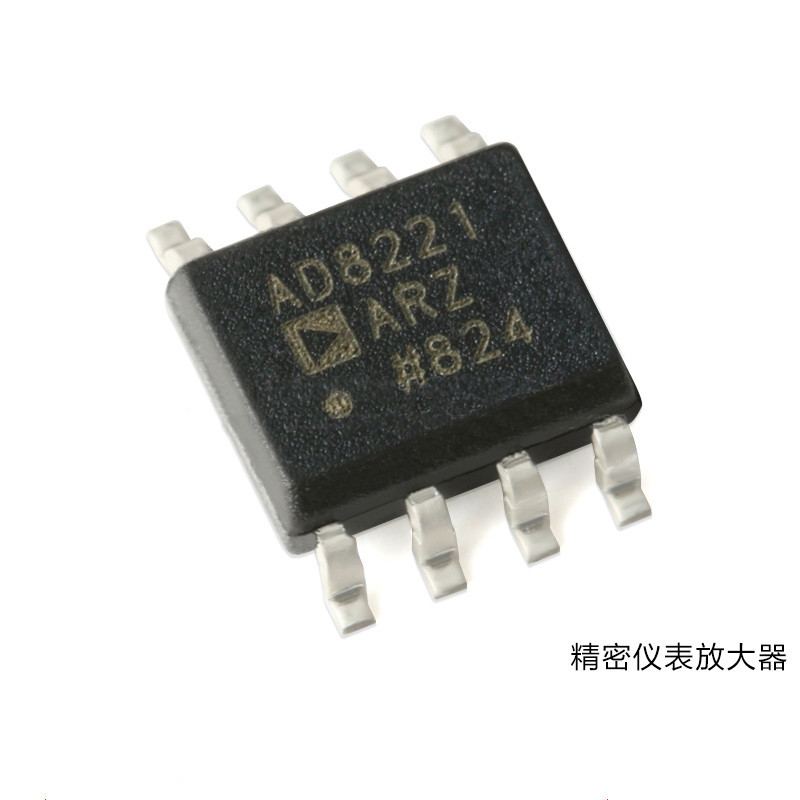

AD8221ARZ-R7 Instrumentation Amplifier Analog Devices 16/32 Bit

Manufacturer:	Analog Devices Inc.
Product Category:	Instrumentation Amplifiers
RoHS:	Details
Series:	AD8221
Number of Channels:	1 Channel
3 dB Bandwidth:	825 kHz
SR - Slew Rate:	2 V/us
CMRR - Common Mode Rejection Ratio:	130 dB
Ib - Input Bias Current:	200 pA
Vos - Input Offset Voltage:	60 uV
Supply Voltage - Max:	18 V
Supply Voltage - Min:	2.3 V
Operating Supply Current:	1 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	SMD/SMT
Package / Case:	SOIC-8
Packaging:	Reel
Packaging:	Cut Tape
Amplifier Type:	Instrumentation Amplifier
Brand:	Analog Devices
Dual Supply Voltage:	+/- 18 V
Height:	1.5 mm
Length:	5 mm
Maximum Input Resistance:	100 GOhms
Operating Supply Voltage:	2.3 V to 18 V
Pd - Power Dissipation:	200 mW
Product:	Instrumentation Amplifiers
Product Type:	Instrumentation Amplifiers
PSRR - Power Supply Rejection Ratio:	130 dB
	1000
Subcategory:	Amplifier ICs
Supply Type:	Dual
Vcm - Common Mode Voltage:	2.3 V to 18 V
Voltage Gain dB:	60 dB
Width:	4 mm
Unit Weight:	0.019048 oz
